SPRINGS ISOLATORS
In the field of low-frequency mountings RG+ offers a wide range of spring isolators with a natural frequency of 3-4 Hz. Due to the integrated all-metal-cushion or the viscous medium there is a damping component included in the system. This enables the machine to run through resonance in a calm way. Application for spring isolators can be found in the mechanical and apparatus engineering or the power engineering. In most applications the centre of gravity is not in the centre of the machine. Therefore an exact calculation of the elements and their arrangement is necessary. Just feel free to contact us.
Description:
- For resilient mountings of machine with a speed >400 rpm
- Materials:
- Springs of spring steel wire, KTL coated
- Damping cushion of 1.4301
- Spring end caps of AL-alloy
- Top and bottom plates of steel, zinc coated
- Resonant frequency: 3-4 Hz
- Load range: 100 – 3.200 kg depending on size and type
Accessoires:
- Fixing plate for single-elements
Applications:
- Resilient suspension e.g. for crushers, mills, pumps, cooling units, test-stands, fans, block heat and power plant modules and components

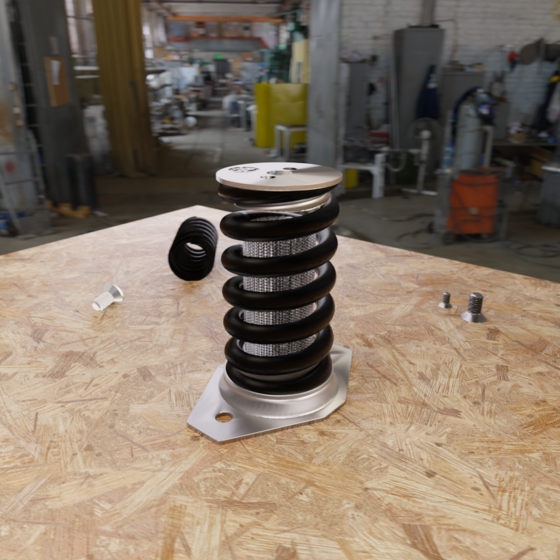

FR-E 3-4Hz A

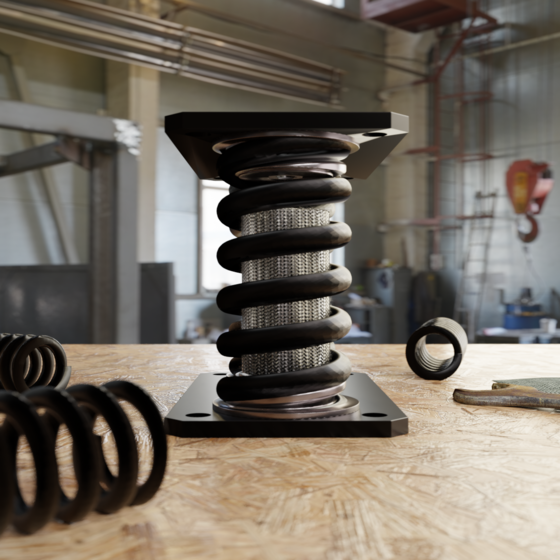

FR-E 3-4Hz

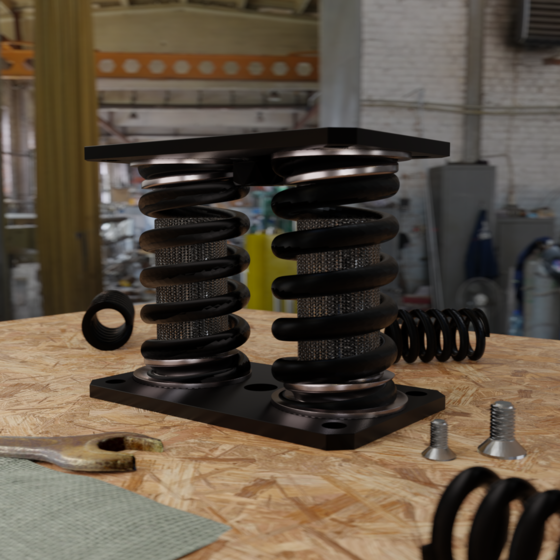

FR-E2 3-4Hz
FR-E4 3-4Hz

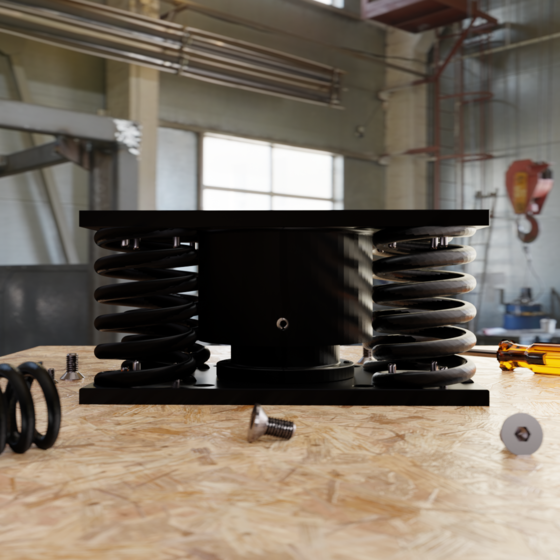

FV-E4 3-4Hz
FV-E8 3-4Hz
