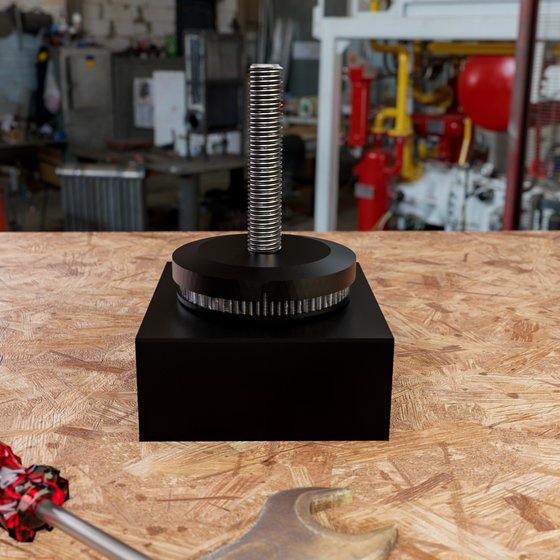

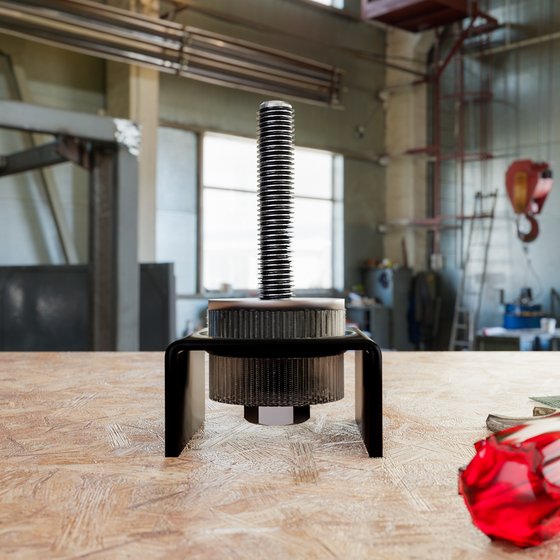

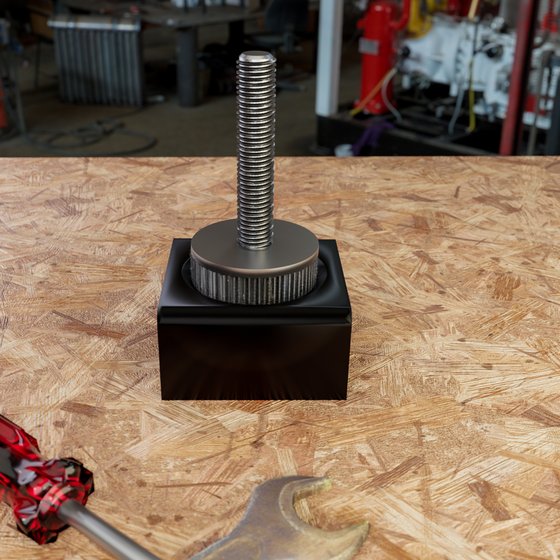

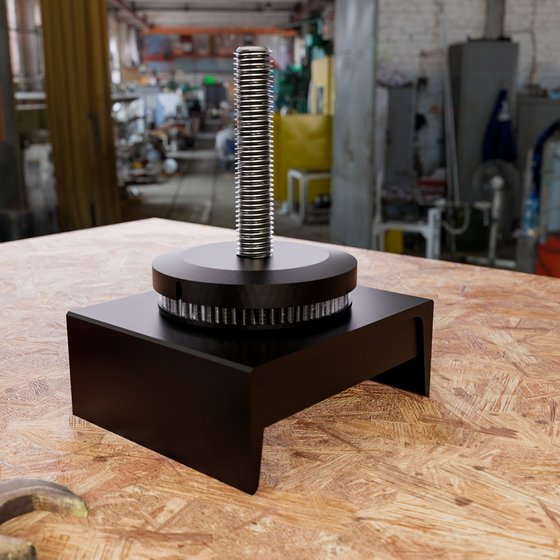

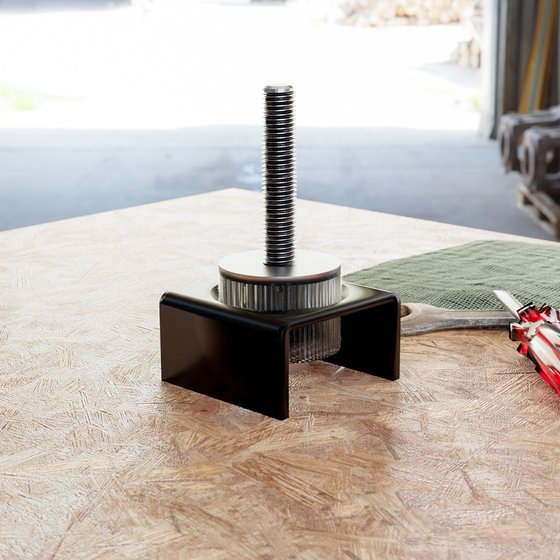

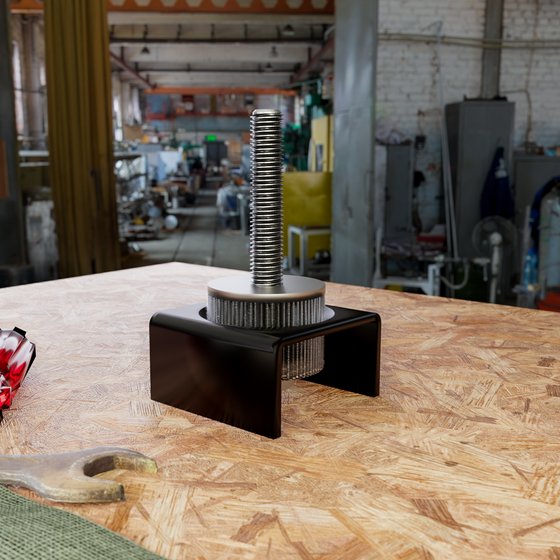

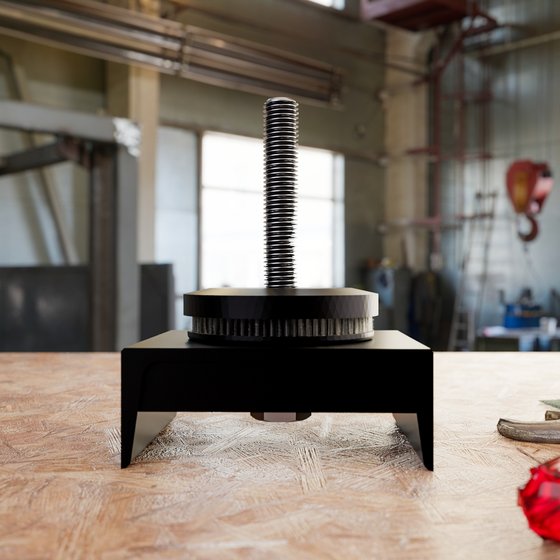

GDZ-5 - VIBRATION DAMPER
In our vibration dampers of the GDZ-( )-5 series two all-metal-cushions are installed. Depending on the assembly, these cushions can be loaded with pressure or tension. These elements are available in a load range from 250 – 8.000 kg. They can be welded to the plant periphery by using the integrated cushion seat. GDZ-( )-5 elements have their main use in the fields of plant- and maritime engineering especially to mount complete exhaust piping systems. In this case GDZ-( )-5 needs to be your first choice due to their resistance against heat and their long lifetime.
Description:
- Multi-directional vibration damper in different sizes for welding connections
- Designed for axial load only
- Materials:
- Damping cushion: 1.4301 or 1.4404 (others on demand)
- cushion seat of steel, KTL coated
- Screw and washers of steel, zinc coated
- Resonant frequency: 15 – 20 Hz
- Load range: 250 – 8.000 kg depending on size
- High static load capacity
- High dynamic overload
- Long lifetime, compact design
Applications:
- Flexible mounting for complete exhaust systems
GDZ-5 1
GDZ-5 2
GDZ-5 3
