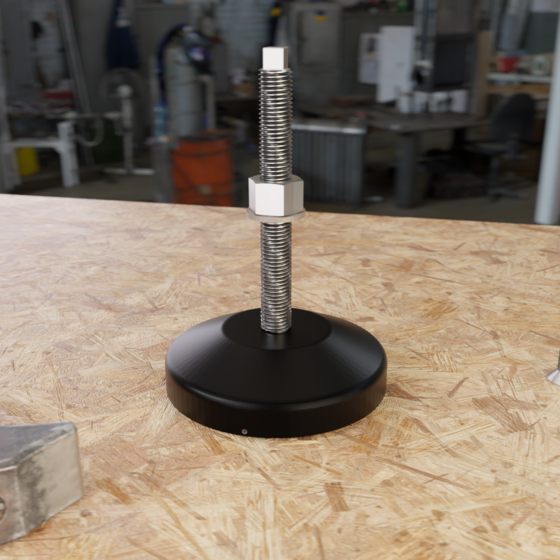

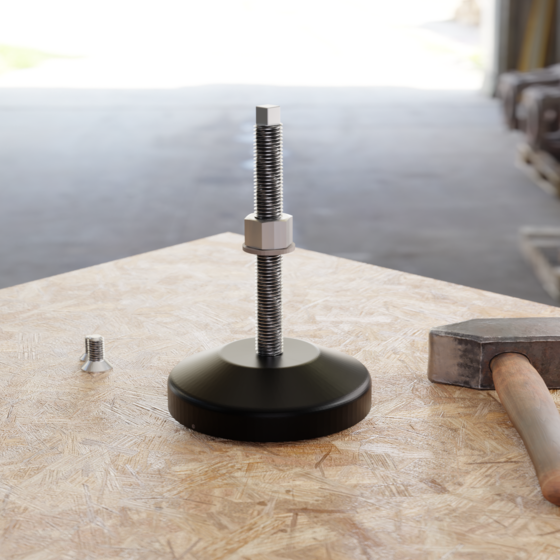

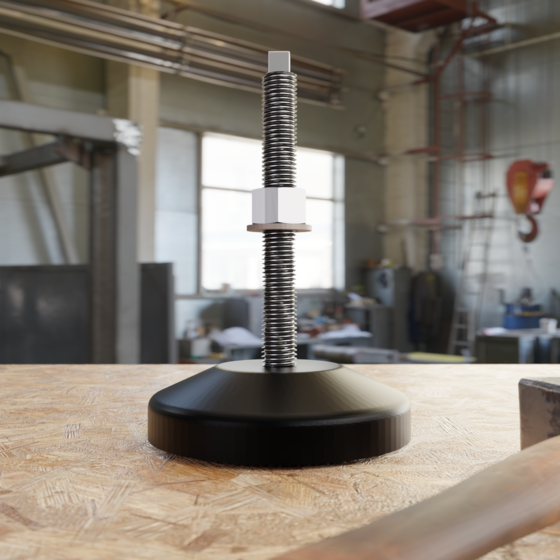

GST - VIBRATION DAMPER
Vibration damper of the GST-( ) series are equivalent to those of the GMF-( ) series. The only difference is an integrated leveling function of the element. They are the perfect solution for your whole machine parc, because they need no maintenance and need not to be exchanged after 1 or 2 years in use. They are not fixed with the ground so the flexibility of all your machines retains. The load range of the elements depends on their size and lies between 250 and 7.000 kg.
Description:
- Machine feet in different sizes
- Materials:
- Damping cushion: 1.4301 or 1.4404 (others on demand)
- Housing, cushion seat of steel, KTL coated
- High-adjustment screw, nut, washer of steel, zinc coated
- Resonant frequency: 15 – 40 Hz depending on type
- Load range: 250 – 7.000 kg depending on size
- High static load capacity
- High dynamic overload
- Long lifetime, compact design
Accessoires:
- Slip resistant sole
- Base plates
Applications:
- Resilient suspension for machine tools e.g. turning machines, presses, grinding machines
